Create your unforgettable long-distance off-road trip!

Seamlessly transitions from city streets to countryside routes on a single bike. Equipped with suspension and all-terrain tires, it will conquer forest paths and service roads with ease.

Your Adventure Unfolds on Launch EX

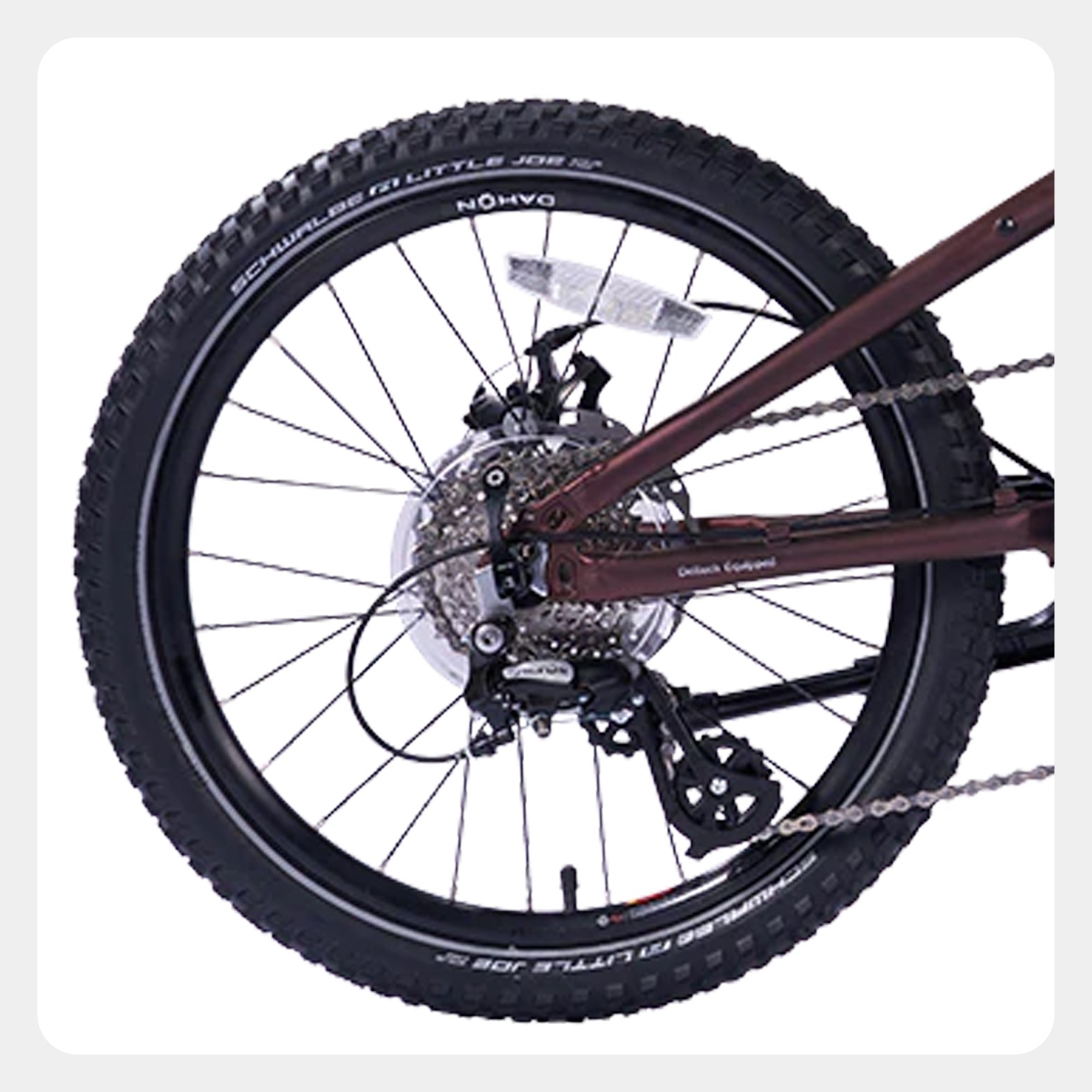

Multi-Terrain Tire

The anti-slip and puncture-resistant Schwalbe litle Joe tires provide superior traction on mud, sand andrough terrain. The all-weather, shock-absorbing design offers stable and smooth rides on unevensurfaces.

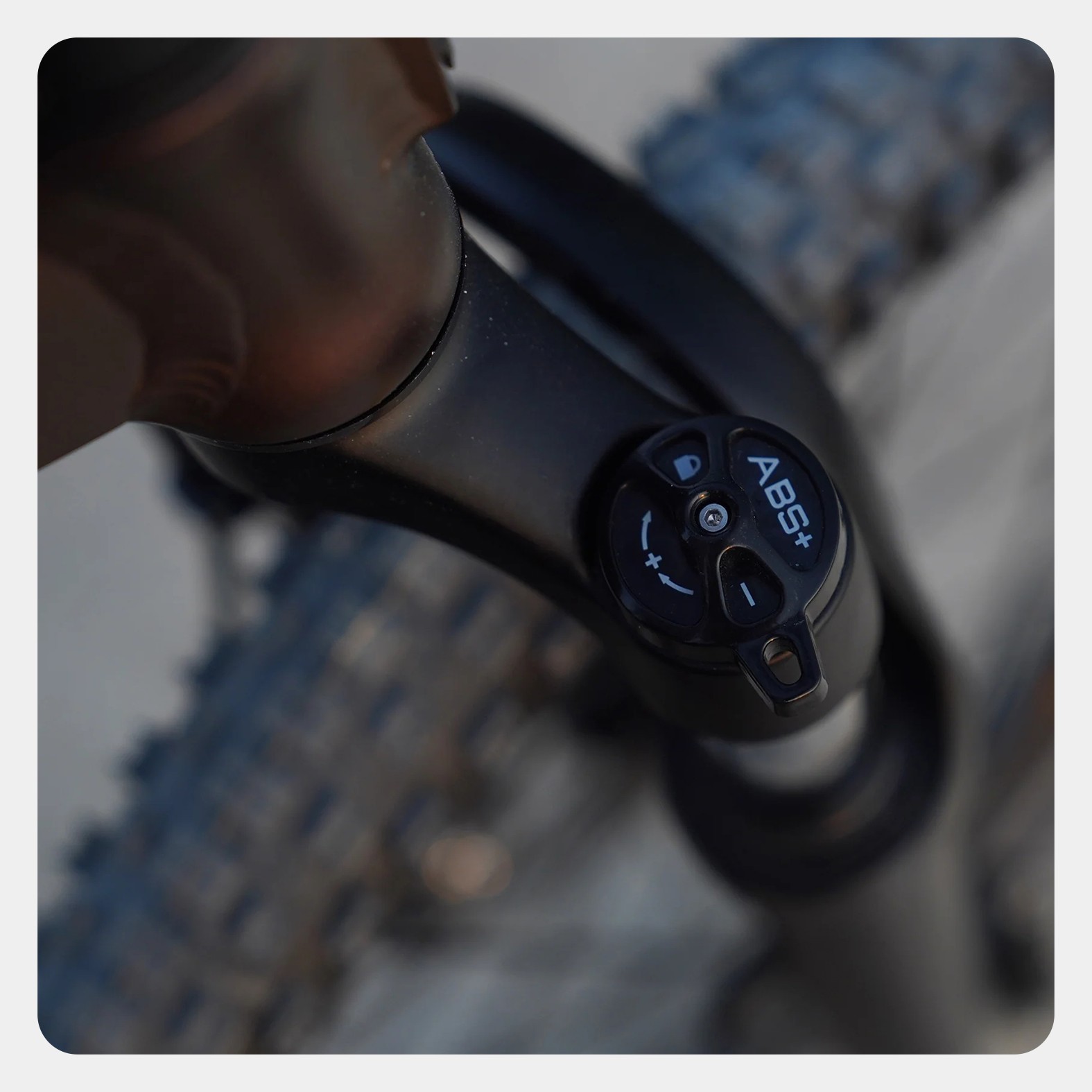

Hydraulic suspension fork

Absorbs the shock from difficult terrains and provides more comfortable offroad rides.

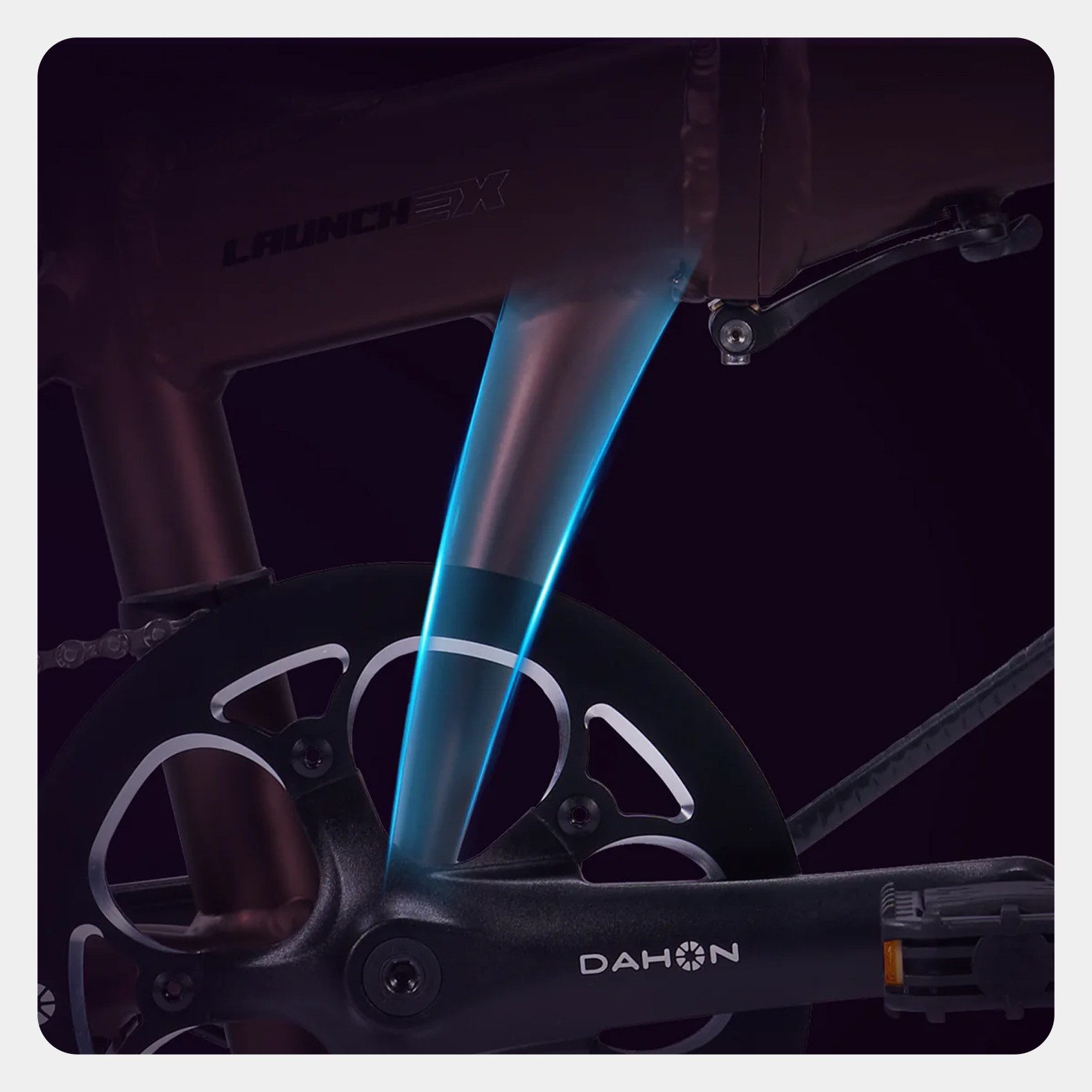

Super Downtube

A specially engineered down tube boosts frame stiffness and improves balance. It’s the backbone of a smoother, safer ride—built for real-world urban adventures.

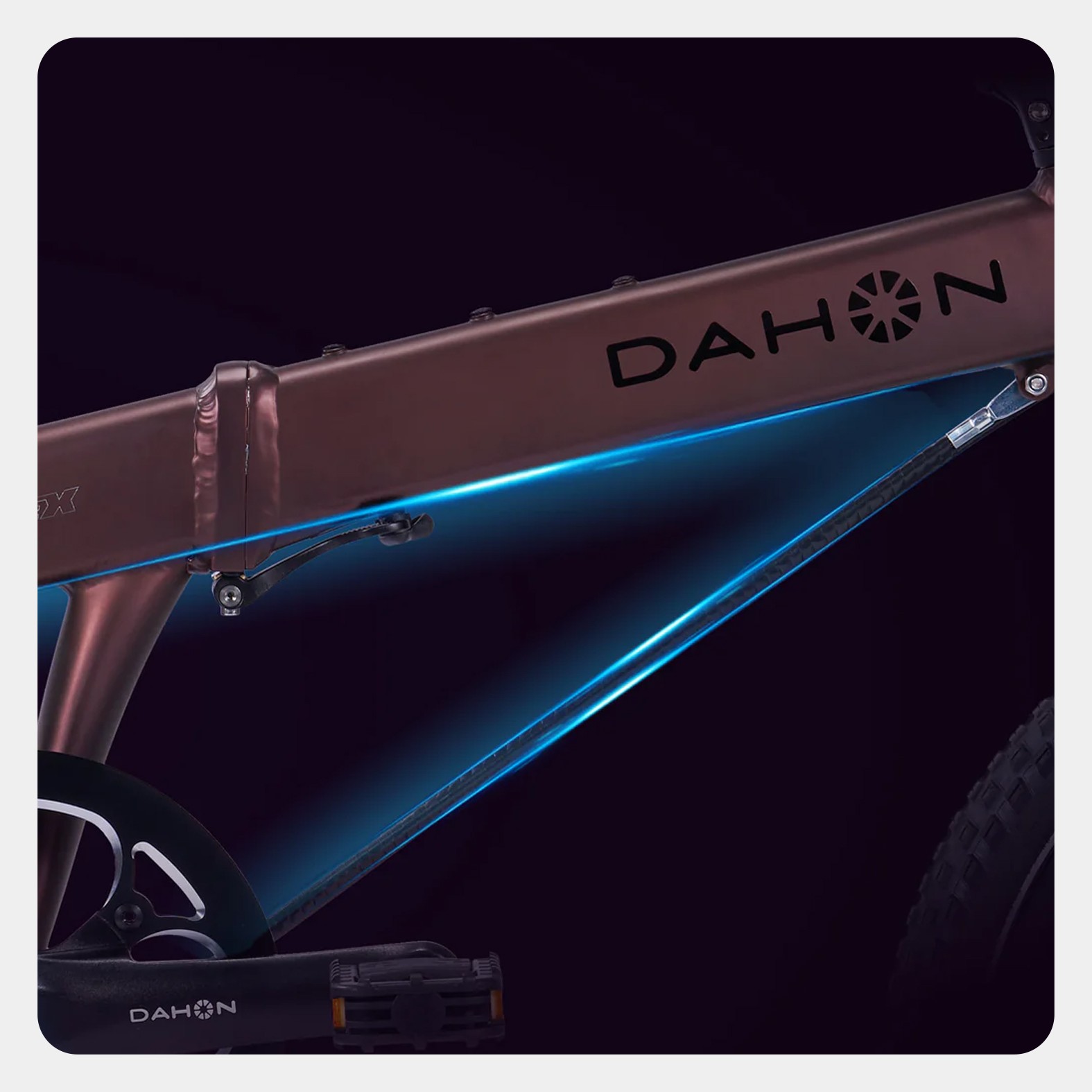

DELTECH

15% Frame Rigidity, Giving a 5-10% speed boost.

DAHON’s patented DELTECH adds a diagonal support cable that increases frame rigidity, reduces frame stress, and improves power transfer. Ride with more stability and confidence—especially at higher speeds or on uneven roads.

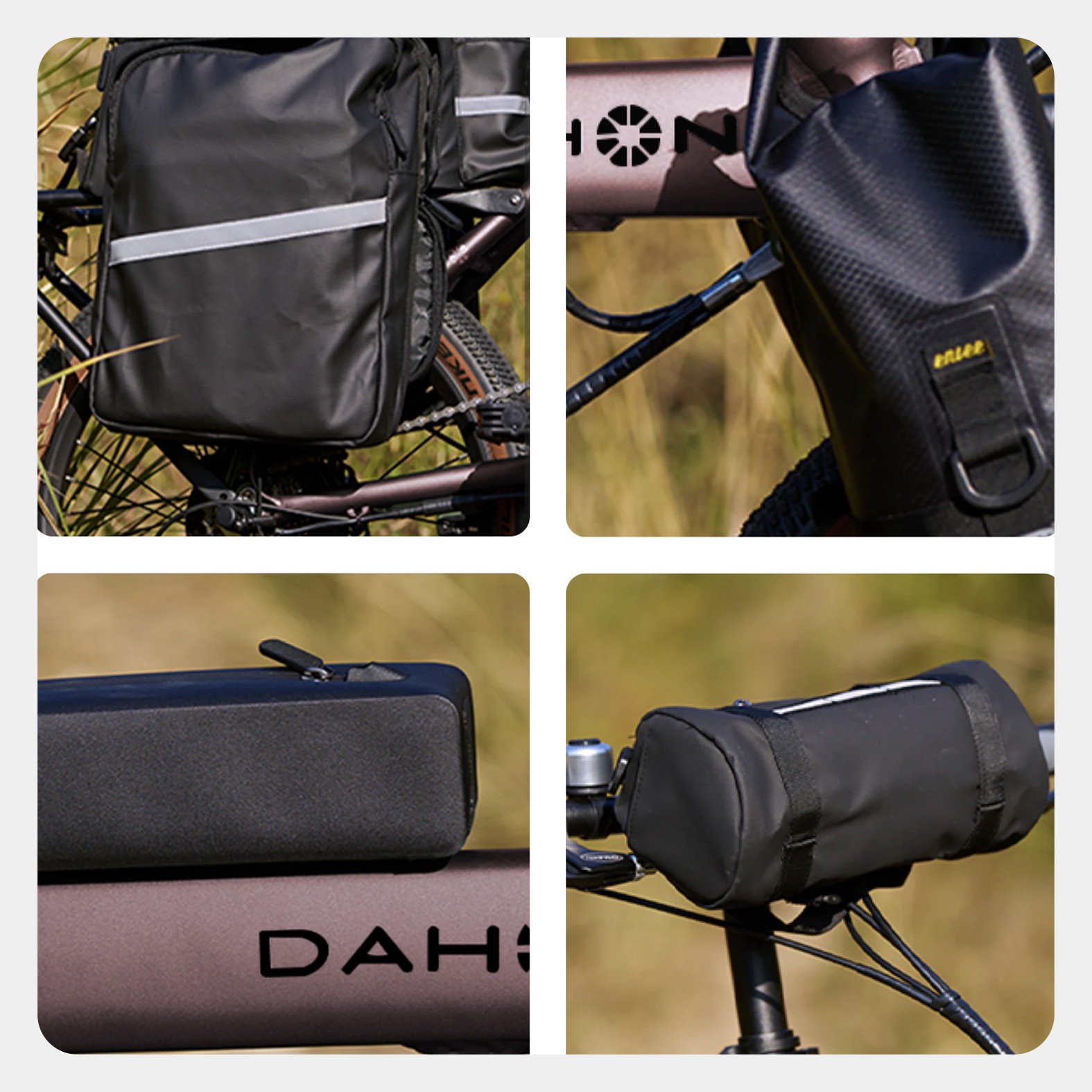

Loading Capacity

Designed for easy cargo handling, offering practical storage solutions for your essential items. up to 10kg.

SHIMANO 8-speed Drivetrain System

Featuring SHIMANO 8-speed gear: 53T chainring and 11-32T cassette deliver quick start on slopes and high speed cruising on roads.

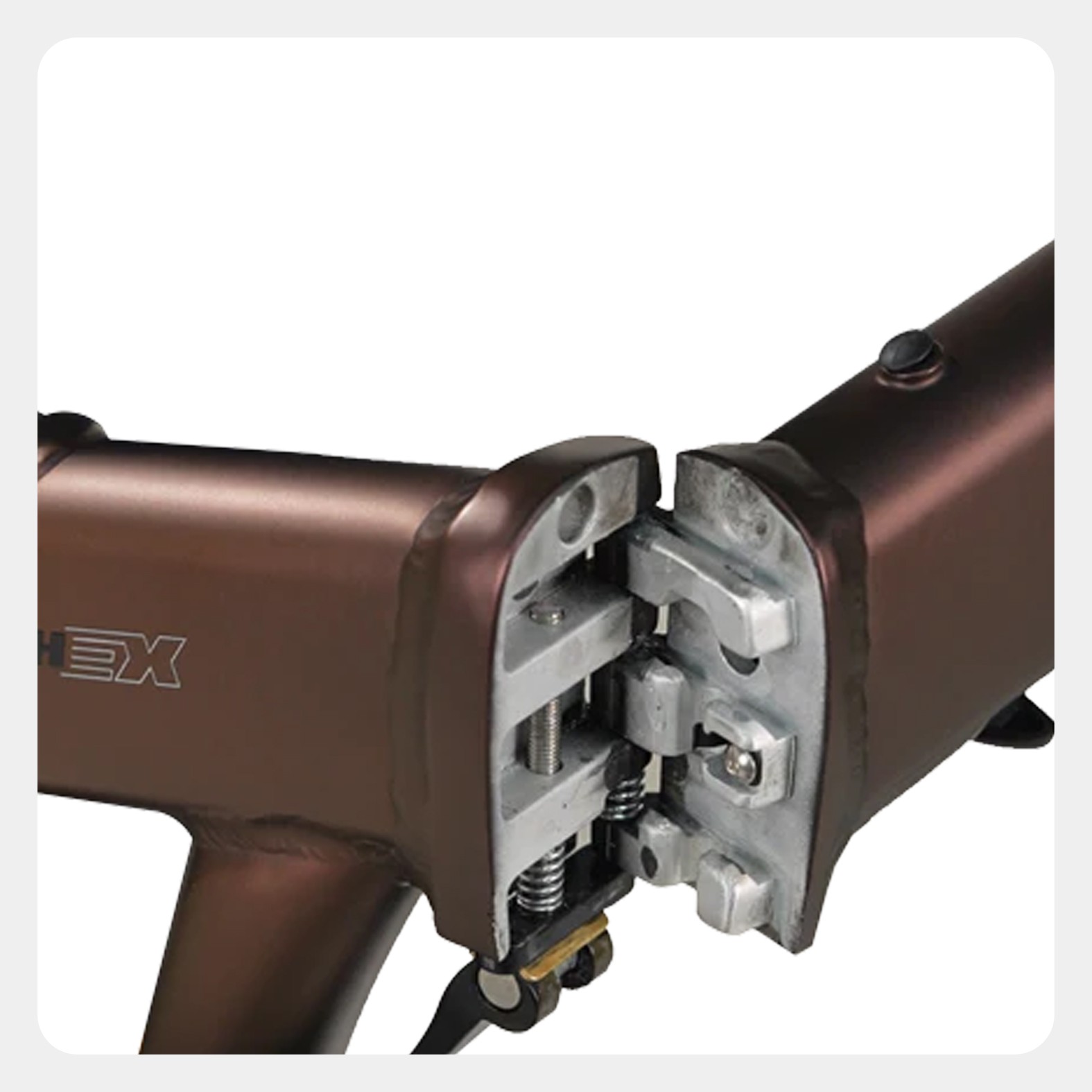

2nd Gen Jaws Hinge

Upgraded lock for a more durable and reliable hinge, perfect for bumpy road conditions.

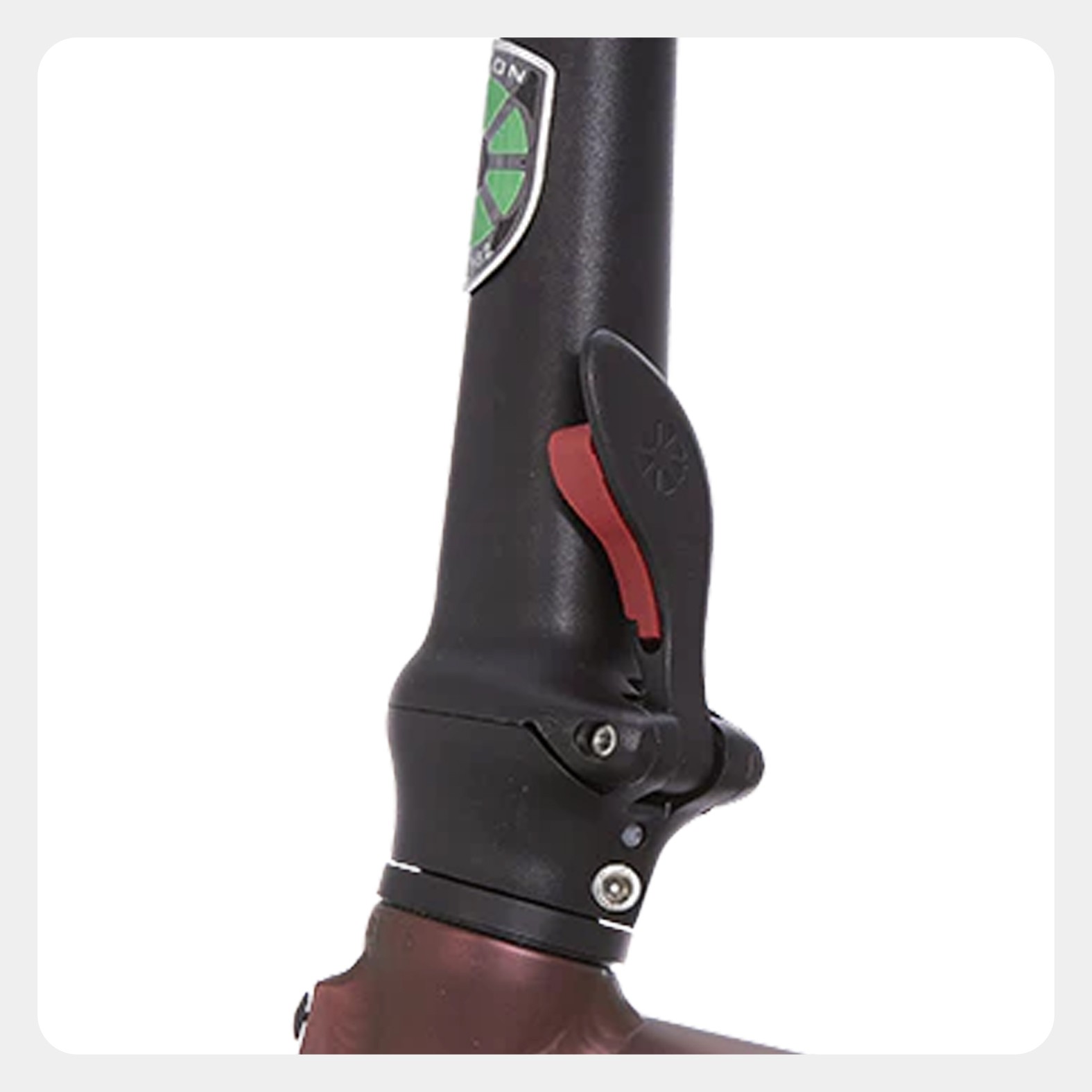

Folding Innovation You Can Trust

The exclusively patented handlepost design provides exceptional stability and comfort, making folding seamless and secure.

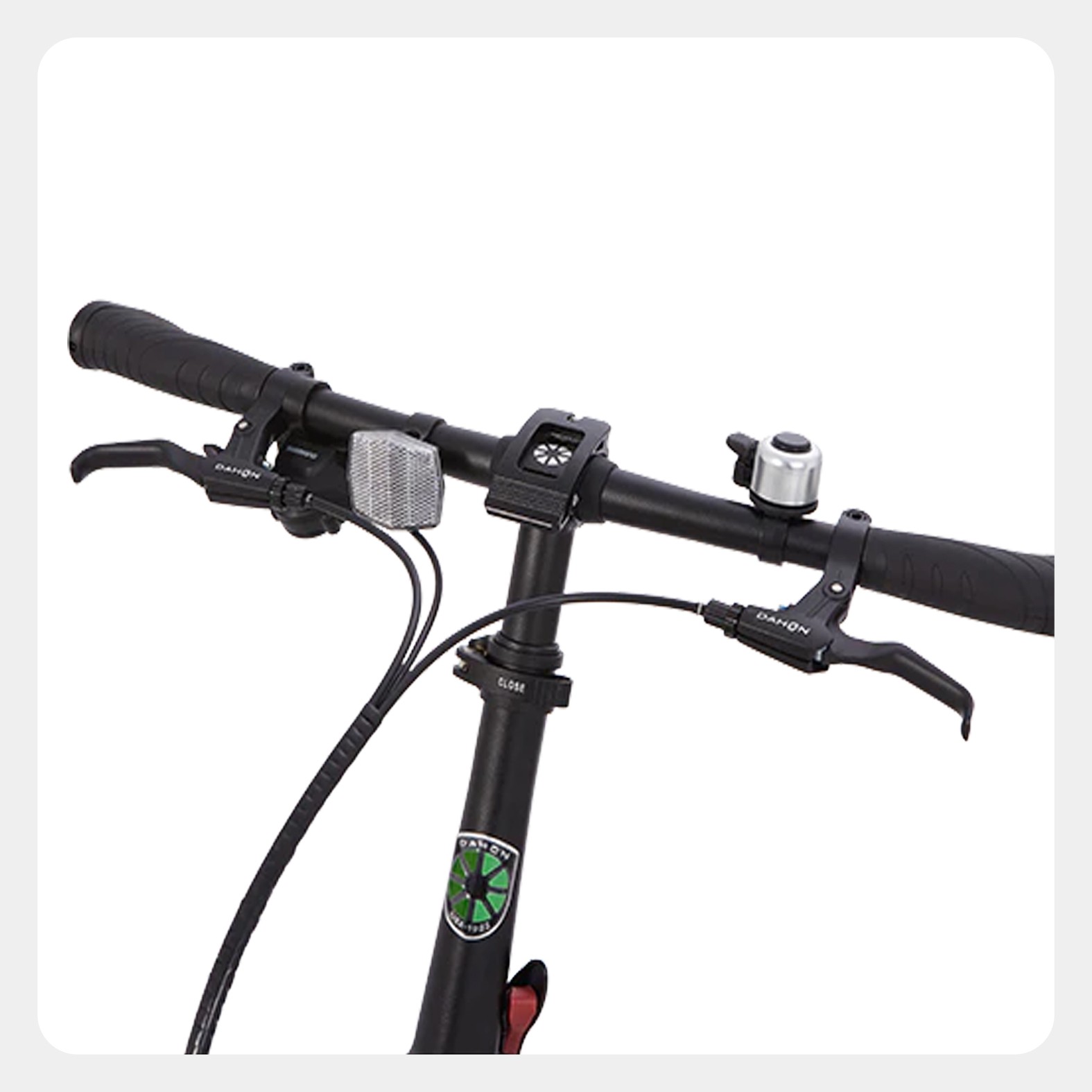

Precision Adjustment for Maximum Comfort

Smoothly adjust folding angle and height for a personalized ride experience and easy storage.

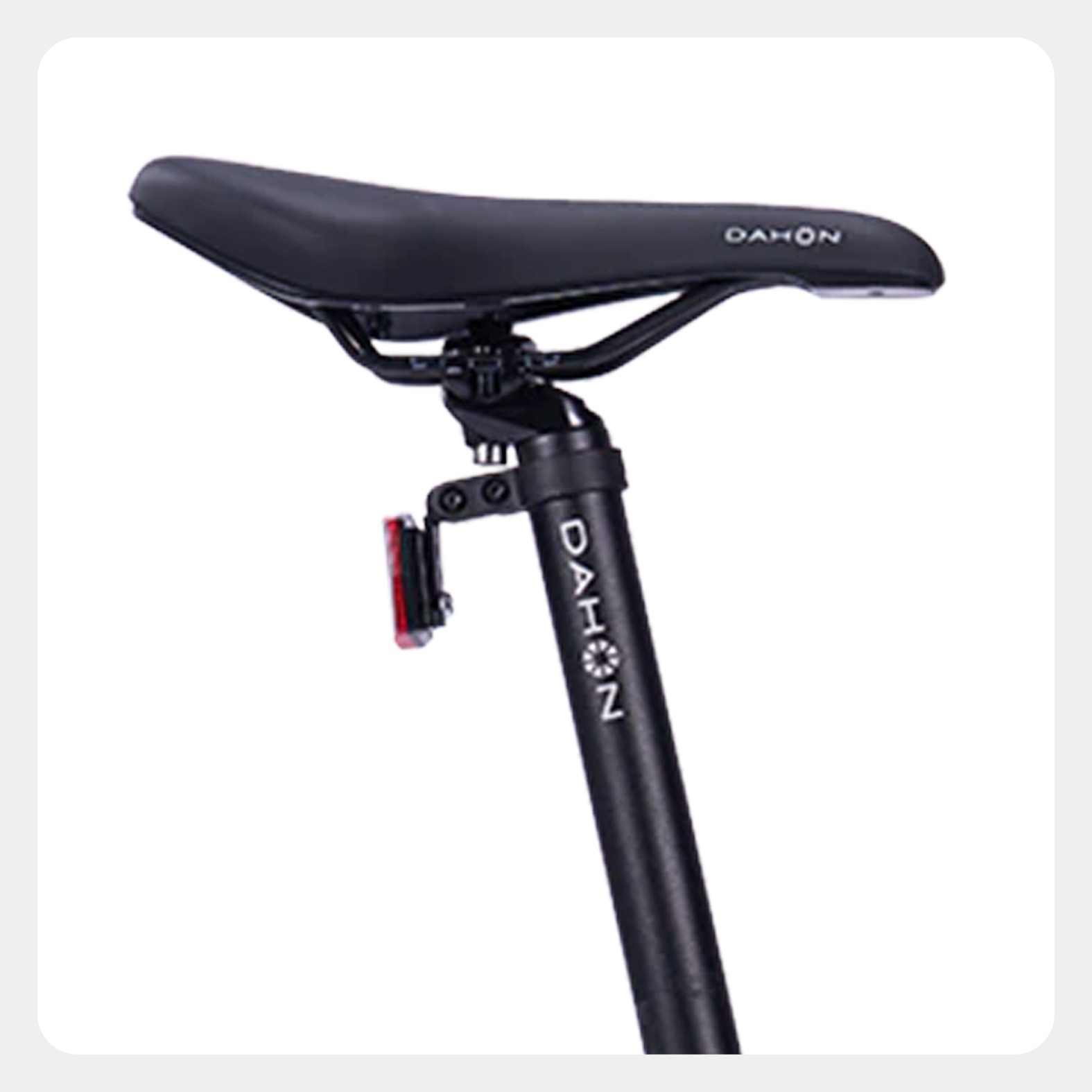

Height-Adjustable Saddle

The extended aluminum seat post allows for a wide range of adjustments to fit riders of different heights.

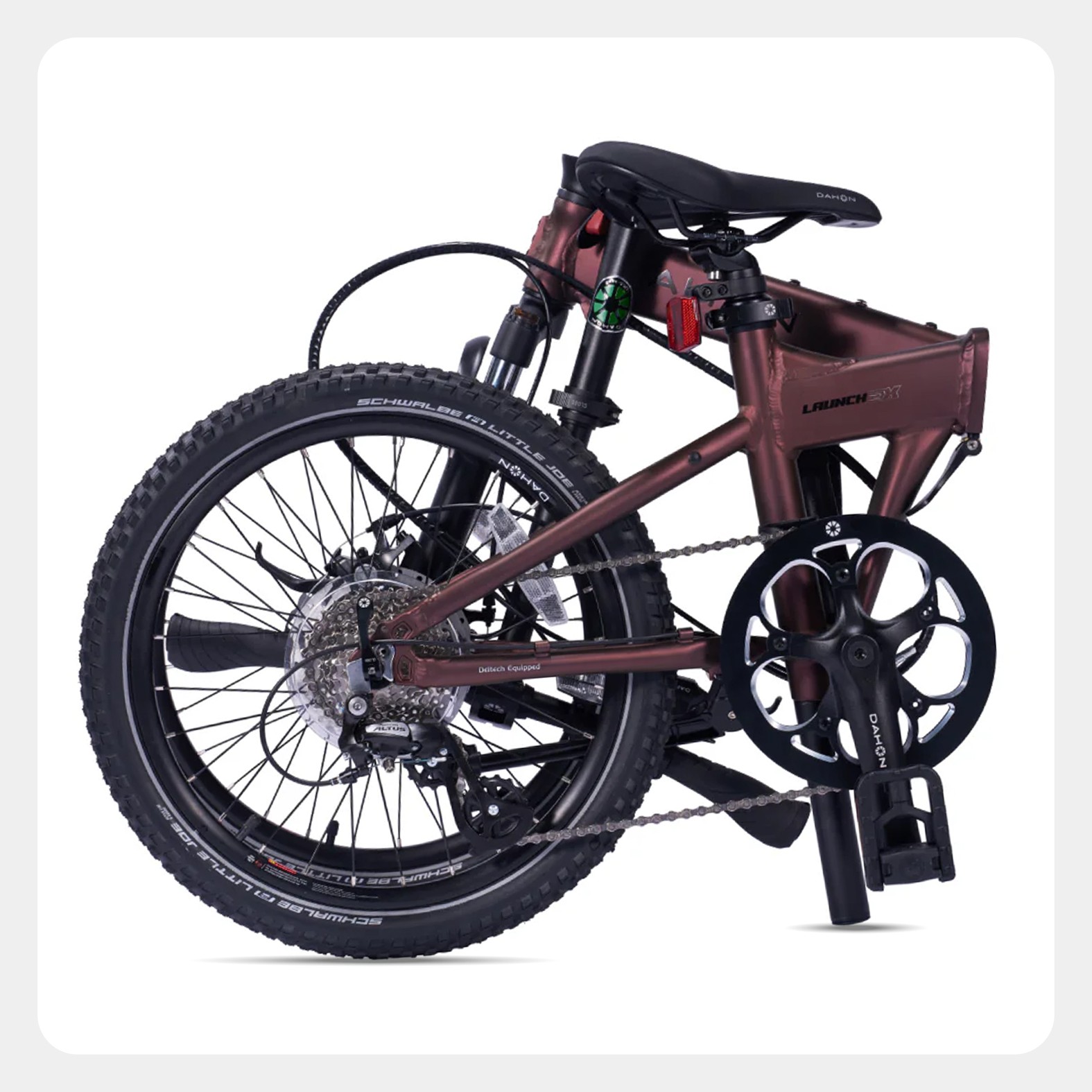

DFS (Dahon Folding System)

Invented over 30 years ago by Dahon, has been adopted by many folding bikes on the market. Easy, even lighter, and more compact in 3 steps. By keeping improving the basics of the system, DAHON was able to establish its current position in the market of folding bicycle.

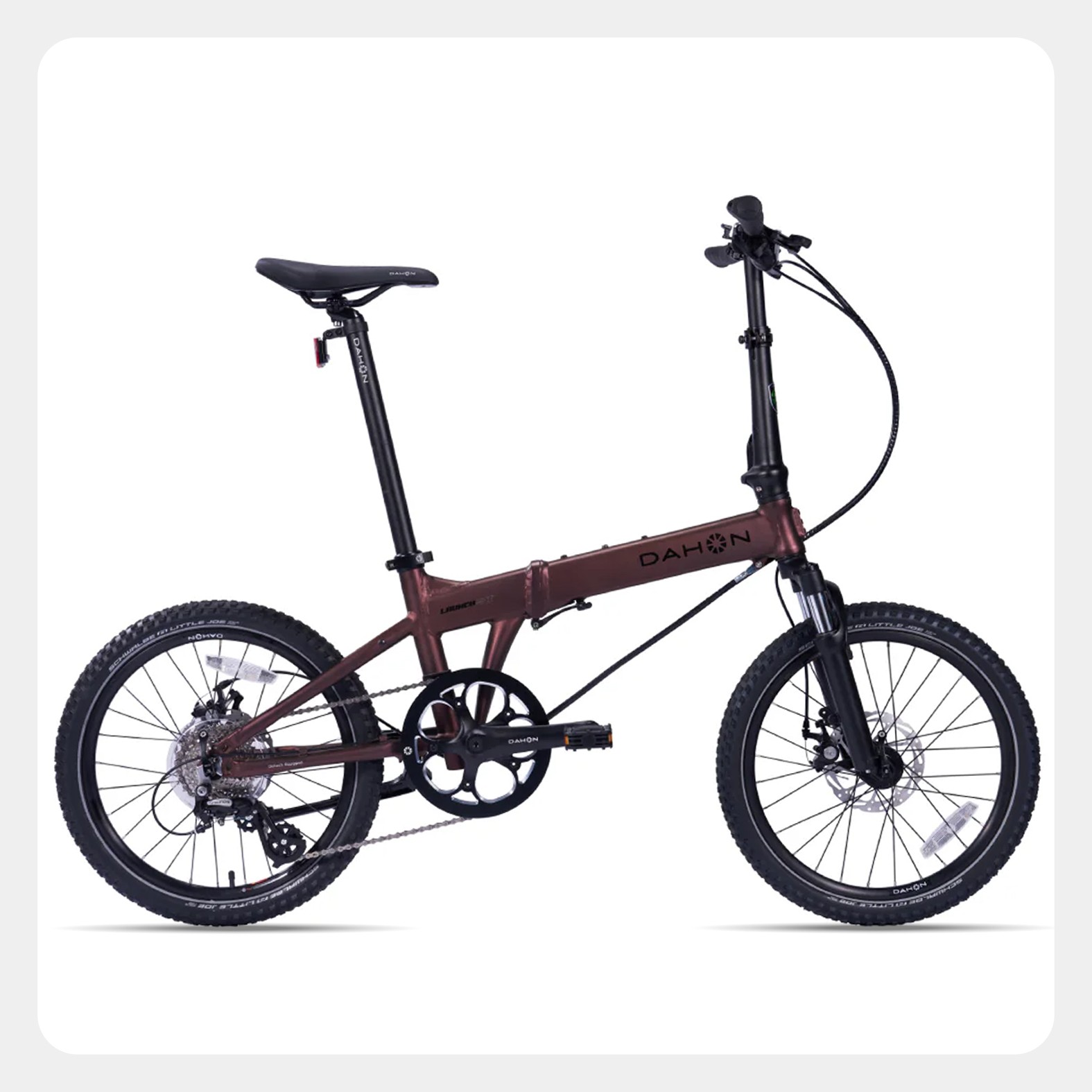

Product Name:  Launch EX

Model Name: KBA083

Frame: Aluminum

Handlebar: Dahon XJ-AL-110 580mm

Handlepost: Dahon Forged handlepost

Rims: XCD16 double wall 20"*406mm*14G*28H

Front Hub: Solon DH901F

Rear Hub: Solon DH901R

Tires: Schwalbe little Joe 20*2.15 FV

Chainring: DAHON 1-253A 53T 170mm

Cassette: Sunrace 8 Speed, 11-32T

Rear Derailleur: Shimano Atlus 8S

Shifters: Shimano RAPIDFIRE PLUS 8S

Grips: Dahon XH-G156BL

Brakes: TEKTRO MD-M300

Brake Levers: Winzip WL-218D

Saddle: Dahon 12110-03#

Seatpost: Dahon JB-SP-312 φ33.9*580mm

Pedals: VP-F55 Foldable

Fender&Rack: Optional

Drivetrain: DAHON 8-Speed Trigger Shifter

Weight: 13.7Kg (30.2 lbs)

Rider Max Weight: 105kg (231 lbs)

Rider Height Range: 145-190cm

Folded Size: 83*38*63cm
